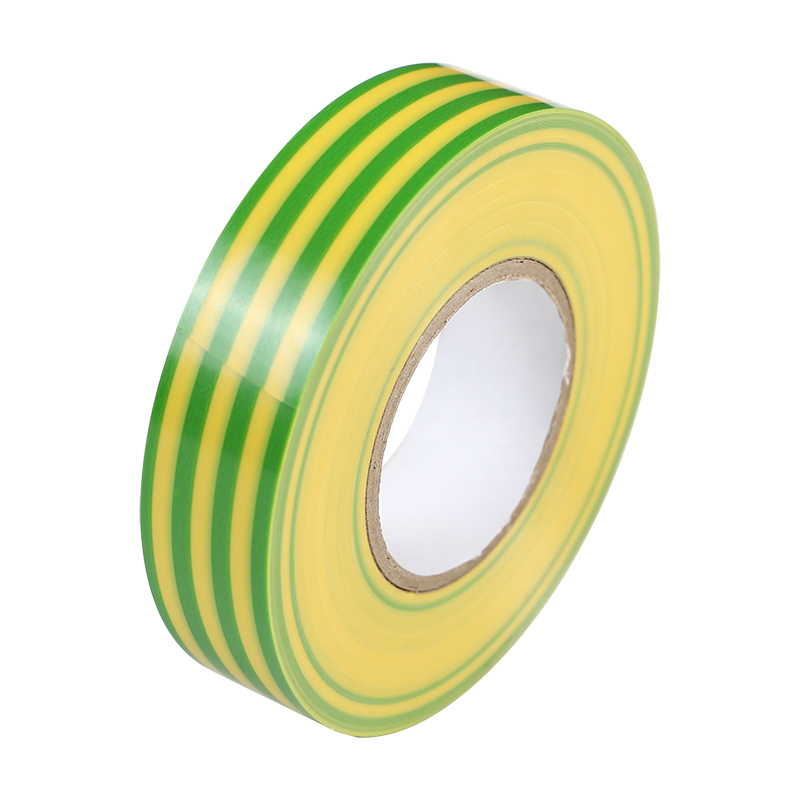

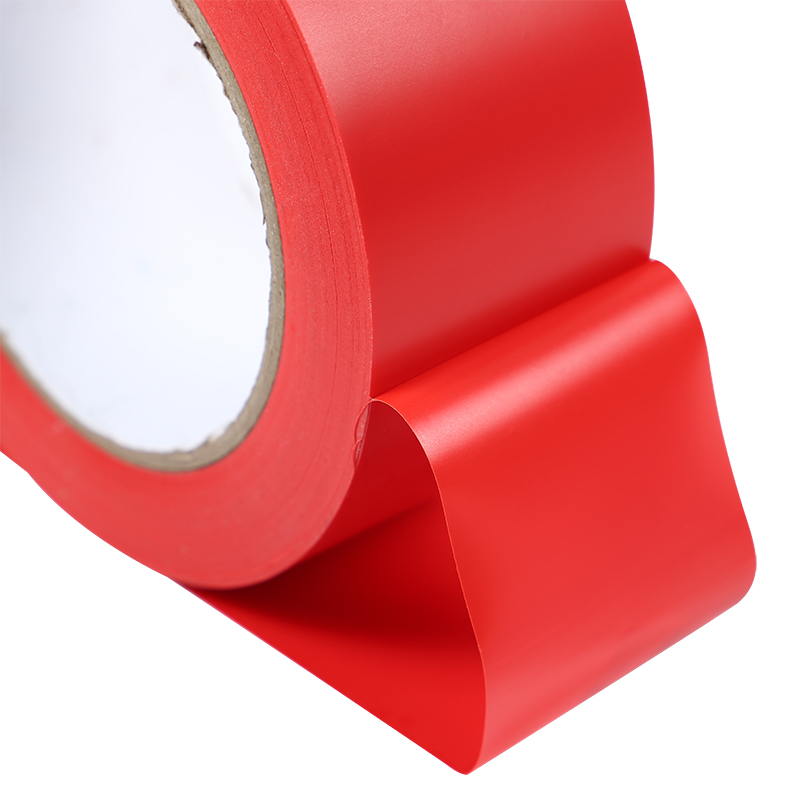

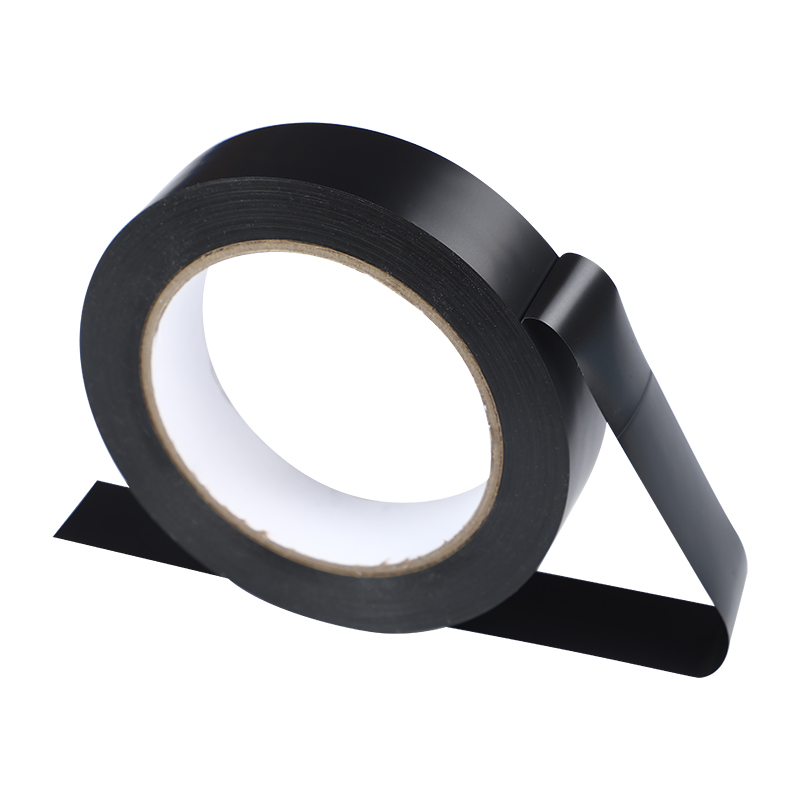

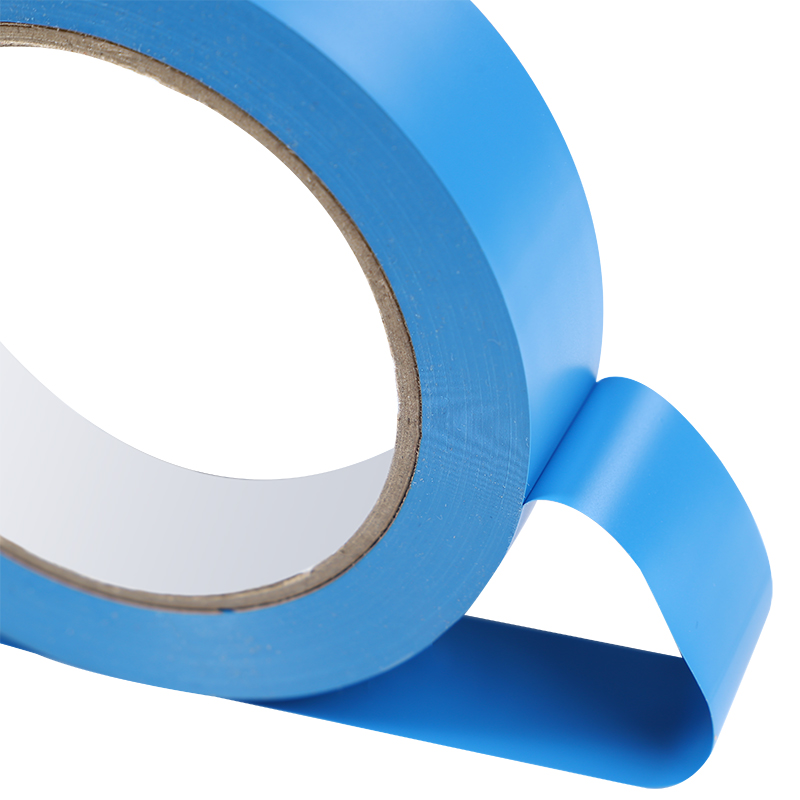

PVC Wire Harness Tape

Parameter	Unit	Typical Range
Thickness	mm	0.10
Adhesion to Steel	N/cm	≥1.3
Tensile Strength	N/cm	≥16
Elongation at Break	%	≥180
Dielectric Strength	KV/mm	≥40
Temperature Resistance	℃	-10 to 85
Flame Retardant	S	≤3
Environment Standard	/	RoHS 1.0

Features:

-Soft flexible PVC, hand-tearable straight for easy harness wrapping
-Balanced adhesion for secure bundling without residue
-Good electrical insulation properties
-Resistant to abrasion, moisture, and common chemicals
-Suitable for general automotive and electrical wire harness use
Applications:

.Door wiring harness
.Instrument panel (normal temp zone)
.Seat wiring
-Interior cable bundling and anti-abrasion protection
Application Notes:
-Apply on clean, dry wire bundles
-Store in cool, dry conditions away from direct sunlight
-Avoid overstretching to maintain adhesion and tape integrity

-Test compatibility with specific wire insulation if needed
